LED Grow Light

132W-136W LED Grow Light

Features:
1. Advanced isolated power driver, UL standard output voltage,intelligent monitor system
2. Top quality 3W EPILEDS chip, independant IP protection, efficient circuit design
3. Optical lens, excellent beam angle and high power efficiency
4. Energy saving and Environment friendly
5. Modular design, Easily installed and maintenance-free

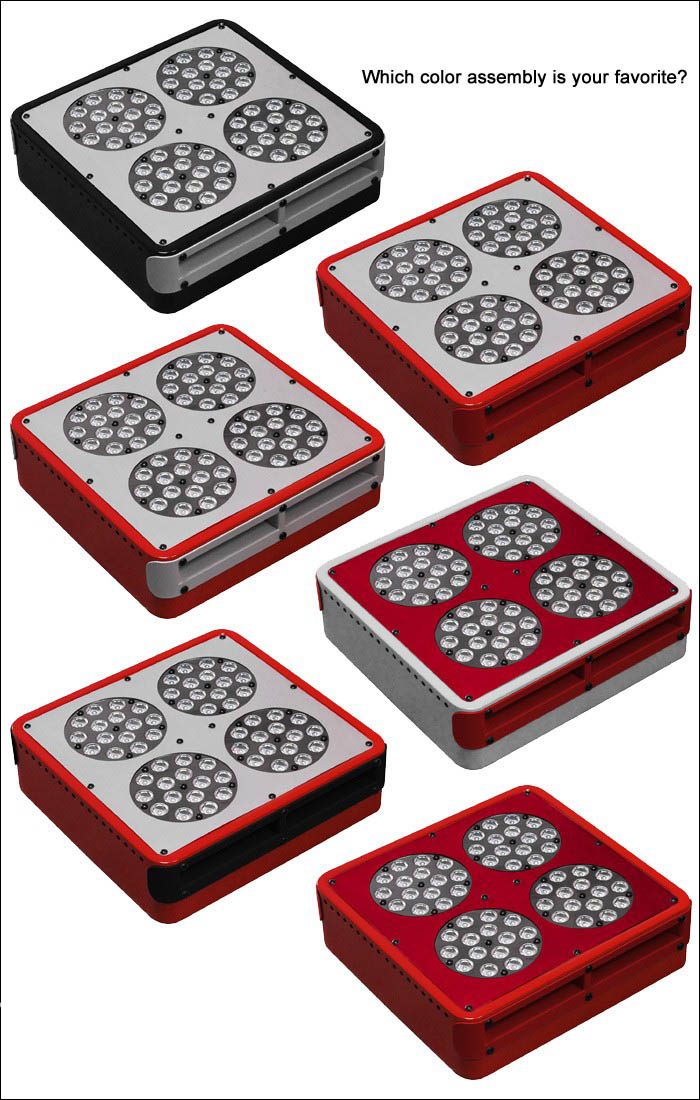

6. Accept Customized-color:11+ bands complete perfect spectrum for your plants

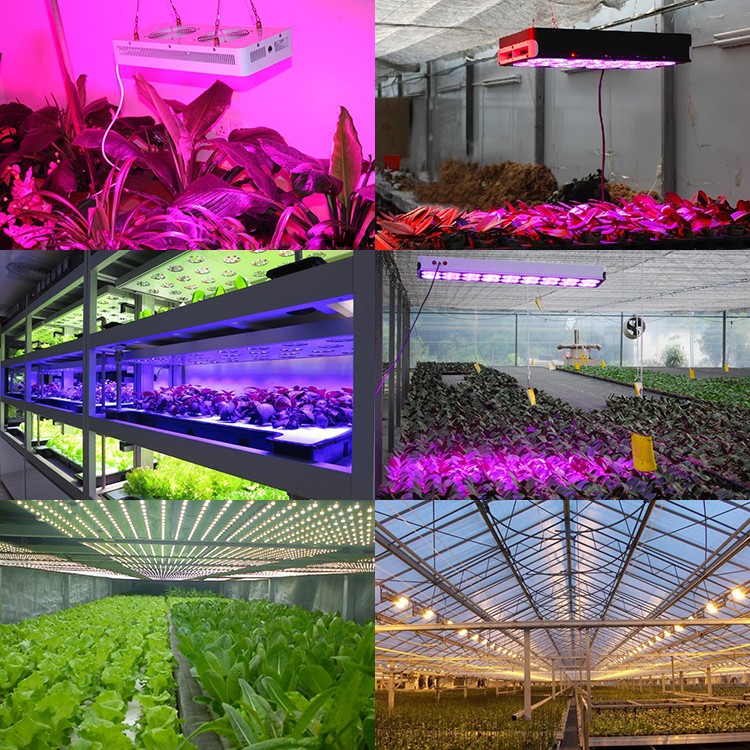

Applications:

1. Hydroponics& Horticulture& Greenhouse Lighting(Tomatoes,Salads,Lettuce)
2. Seeding/Breeding,Farm/Flower/Medicinal plants, etc.

Specifications:

General
Name:	LED Grow Light
Model No:	CDL-G-A4
Actual Power:	132W-136W, LED lighting
Product N.W./Size:	3.65kg/ 270*283*85mm
Materials:	Aluminium frame, PC cover, cooling fans
Electrical
Input:	AC100-240V, 50/60Hz
Output Voltage:	DC32~45V
LED Quantity:	60pcs x 3W
Power driver:	Built-in high quality CC power driver,  PFC>0.95
Optical
Light source:	3W EPILEDS Chip

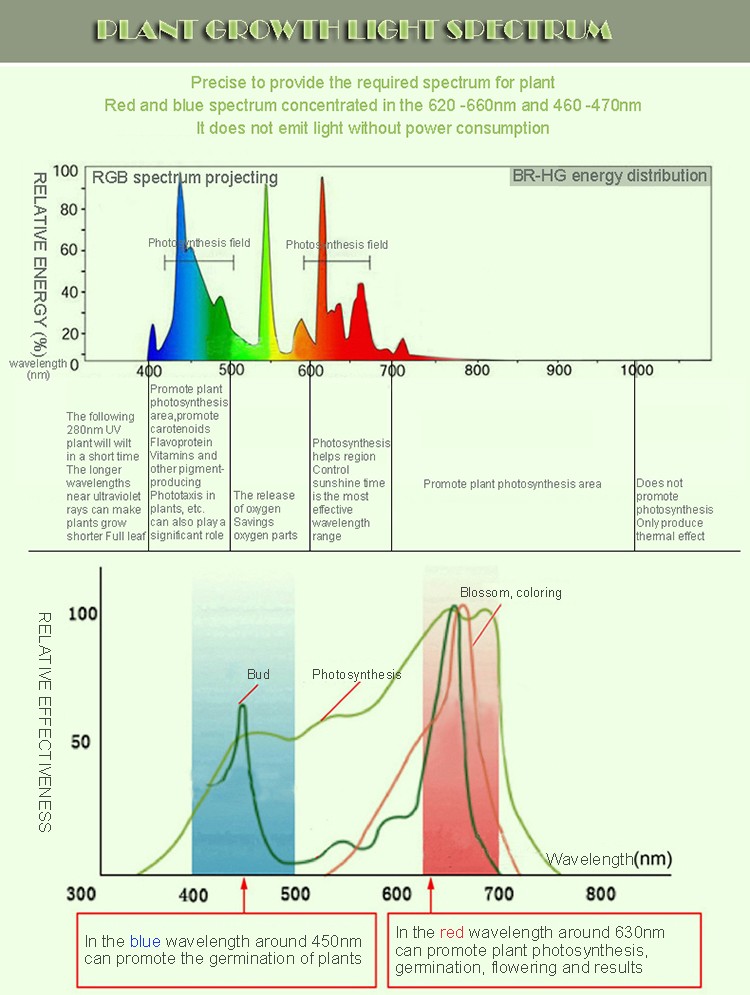

Color:	Red(630nm)/Blue(460nm)
LUX:	9500lux/1m 4700lux/1.5m
Lighting area:	2.4㎡/1m    4.0㎡/1.5m
Physical
IP Grade:	IP40
Installation:	Suspened
Working Environment:	-20~40℃,45%~95%RH
Lifespan:	50,000hrs
Inner Carton Size/ G.W.	360*350*150mm, 4kg
Outer Carton Size/ G.W.	540*380*360mm/4pcs, 17.9kg
Standard configuration:	LED light x1,Power line x1,Chaining x2
Remarks: Above parameter is based on Red:Blue=8:1, for reference only, details, please contact us.

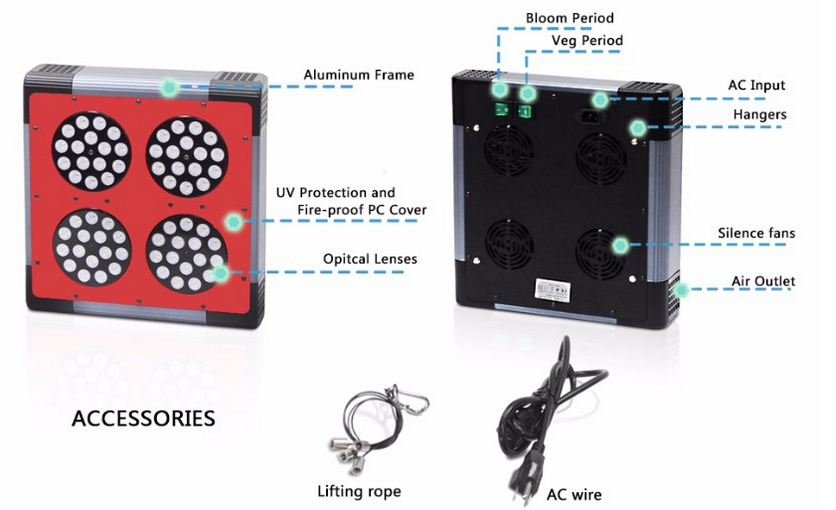

Details:

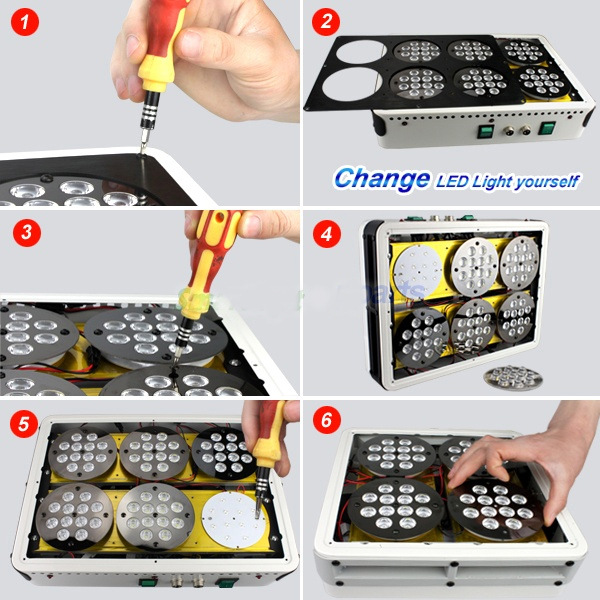

DIY:
